Balancing accessibility with superior specifications, the NCM Milano Plus is a step-through e-trekking bike for riders that are eager to tackle longer routes alongside their daily rides and want an ebike with the range and the integrity to help them do it Read more.
BIKE COMPONENTS
Frame:Â Alu. 6061, 26"*17.3 inches / Alu. 6061, 27.5"*18.9 inches
Suspension Fork:Â Suntour, NEX-HLO
Brake:Â Hydraulic Disc Brakes
Freewheel:Â LY, 8 Speed, 11-32T
Tire:Â Schwalbe, Marathon/Big Ben
Saddle:Â Selle Royal, FREEWAY
Stem:Â Promax. MA-579
Crank:Â Das-Kit, CT48A, 48T
Shifter:Â Shimano, Altus, R:SL-M315-8R, 8 Speed
Derailleur:Â Shimano, Acera, RD-M360
Chain:Â KMC, Z51
Â
ELECTRIC COMPONENTS
Battery:Â Das-Kit, i5-4816, 48V 16AH, 768WH, with an USB Port

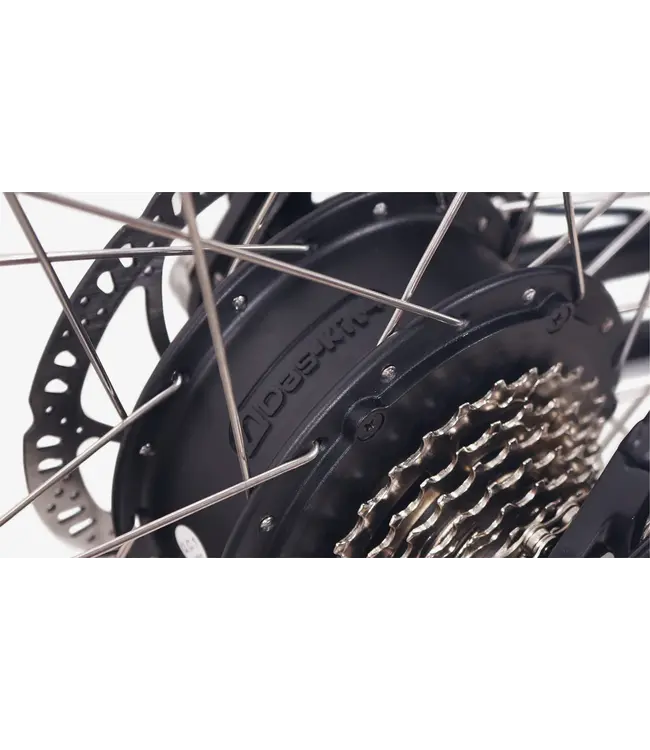

Motor:Â Das-Kit, X15, Rear drive motor, 48V 500W, 32KM/H
Controller:Â Das-Kit, CT-i5, 48V18A
Charger:Â Das-Kit, 48V3A

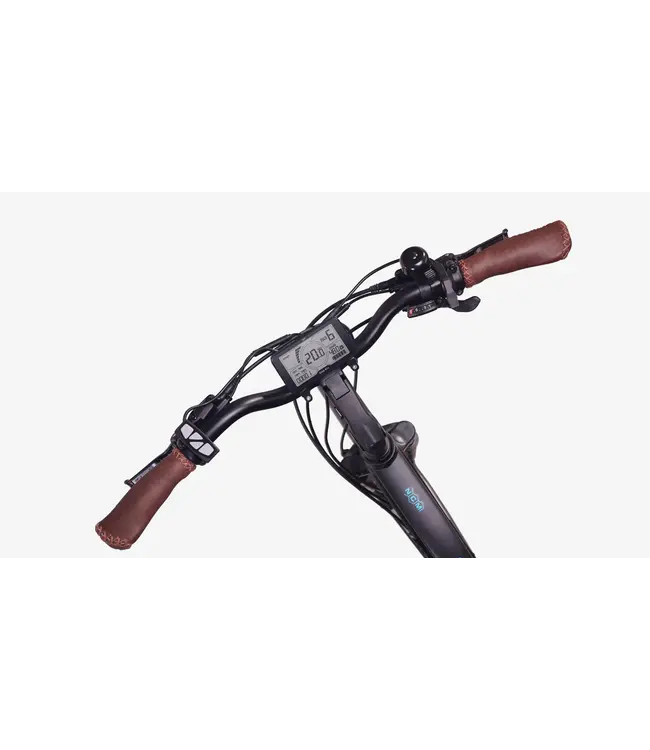

Display:Â Das-Kit, C7

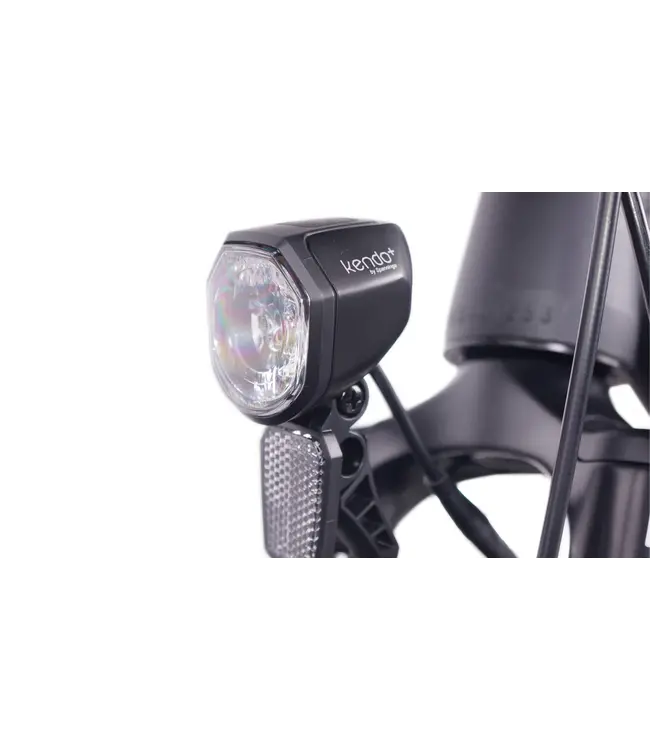

Front Light:Â Kendo, 48V, 30 Lux
Rear Light:Â DR009, AAA*2
Â
Weight
Net Weight (with battery):Â 27.0kg
Battery Weight:Â 4.1kg
Max Load (driver+bike):Â 140.0kg
