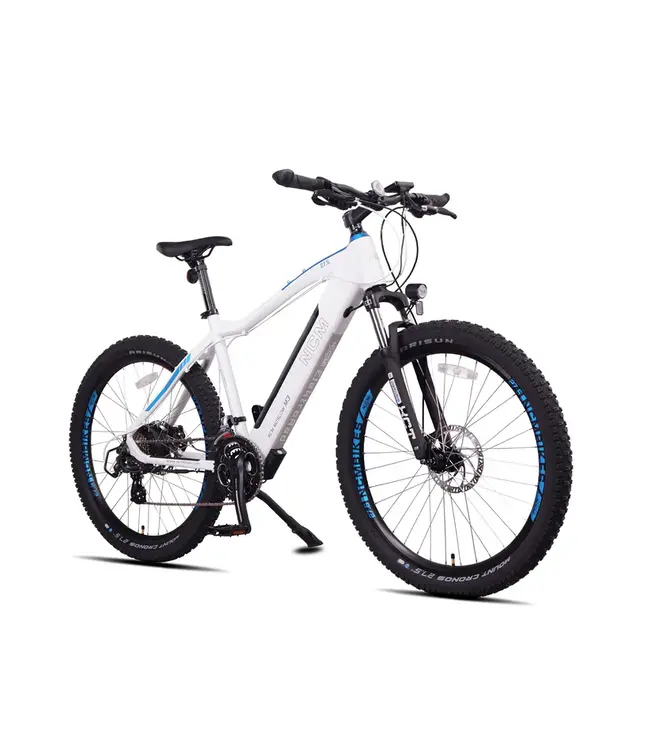

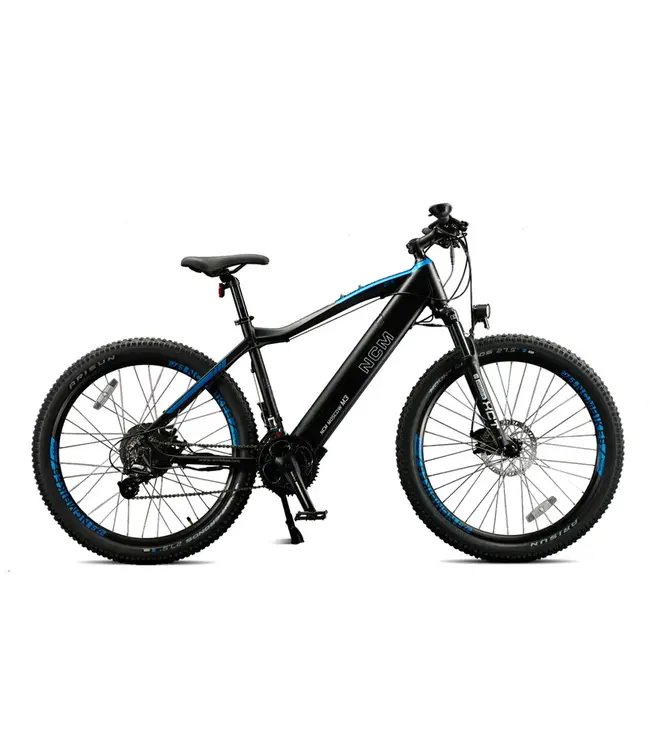

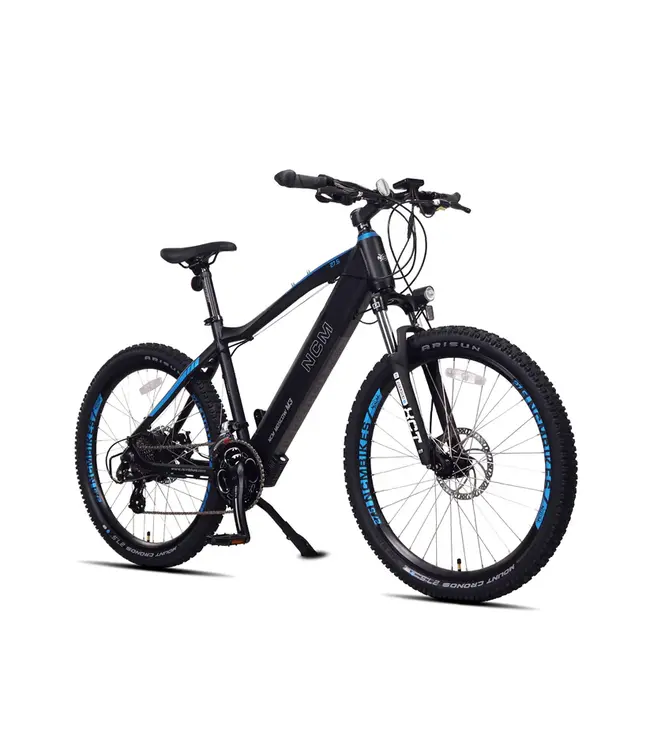

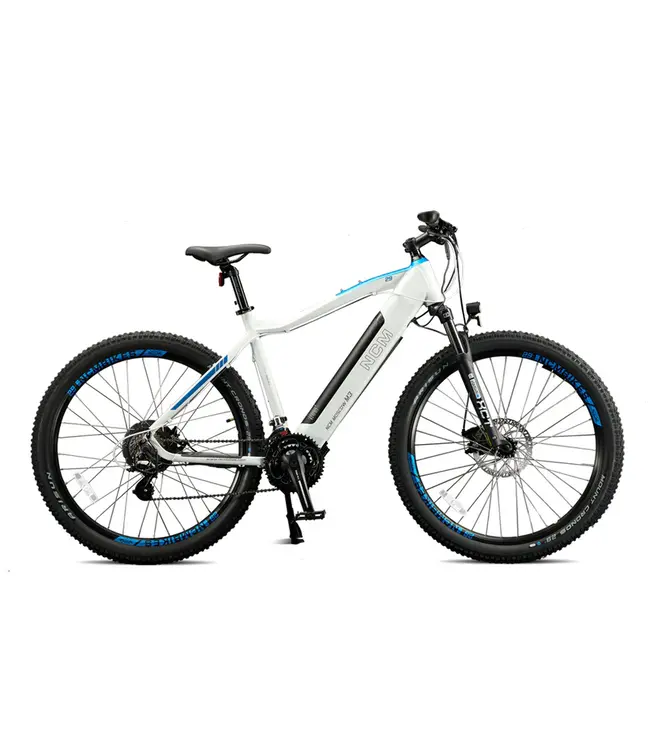

An entry-level e-mountain bike that doesn’t compromise on high-quality components, the NCM M3 is built to maintain its cool no matter what mountain trail it faces, balancing range and performance with accessibility and ease of use. Read more.
BIKE COMPONENTS
Frame: Alu. 6061, 26"*18.1 inches / 27.5"*18.9 inches / 29"*20.5 inches
Suspension Fork: Suntour, XCT
Brake: Disc Brakes
Freewheel: 7 Speed, 14-28T
Tire: Arisun Mount Cronos

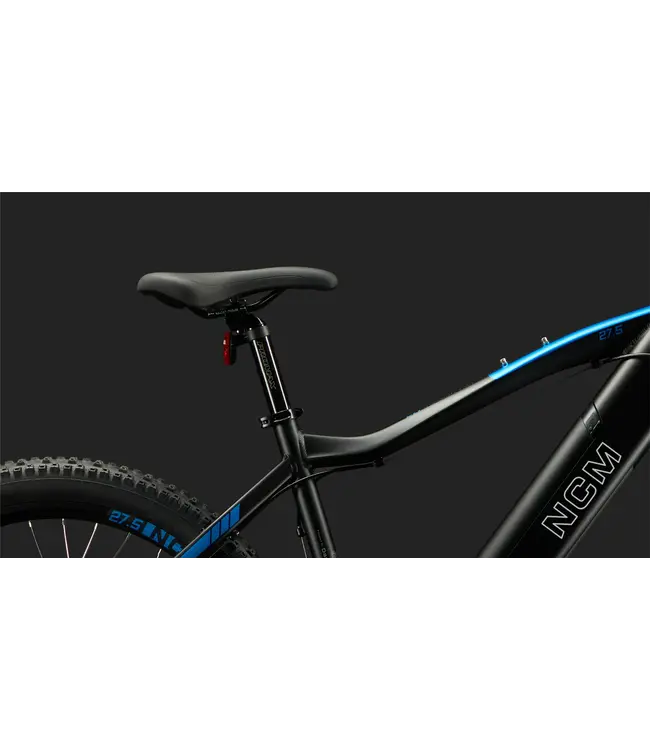

Saddle: VELO, VL-3410
Stem: Promax, Alu.MA-471
Crank: DAS-KIT, CM48,28/38/48T
Shifter Left: Shimano, Altus, F: SL-M315-L, 3 Speed
Shifter Right: Shimano, Altus, R: SL-M315-7R, 7 Speed
Front Derailleur: Shimano, Altus, FD-M313
Rear Derailleur: Shimano, Altus, RD-M310
Chain: KMC, Z51
ELECTRIC COMPONENTS
Battery: Das-Kit, i6-4812, 48V 12AH, 576WH
Motor: Das-Kit, X15, Rear drive motor, 48V 500W, 32KM/H
Controller: Das-Kit, CT5-i6, 48V 18A
Charger: Das-Kit, 48V2A

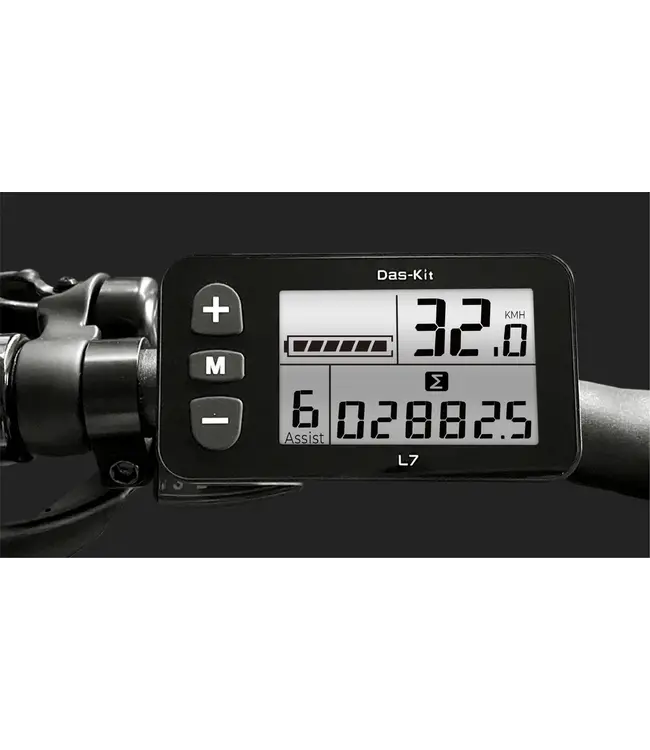

Display: Das-Kit, L7

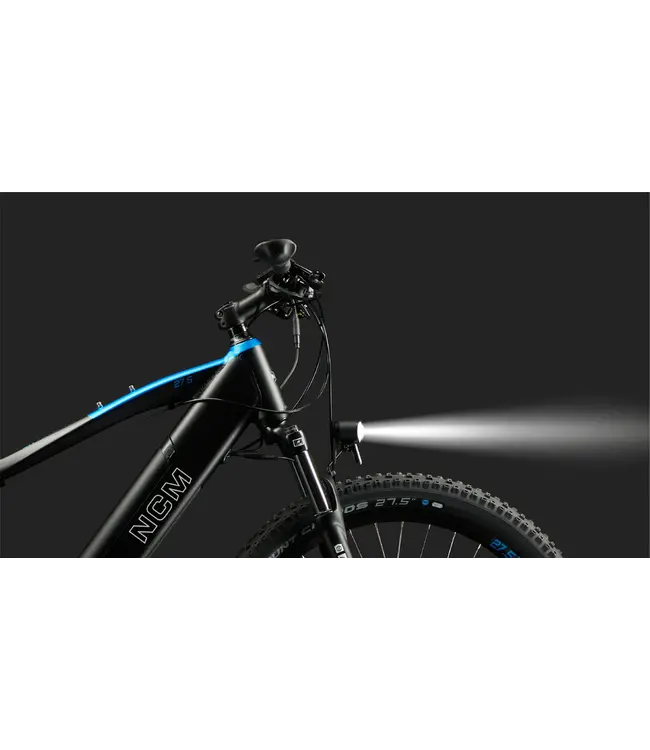

Front Light: DH002, 48V, 40 Lux
WEIGHT
Net Weight (with battery): 26.0kg
Battery Weight: 3.4kg
Max Load (driver+bike): 125.0kg
