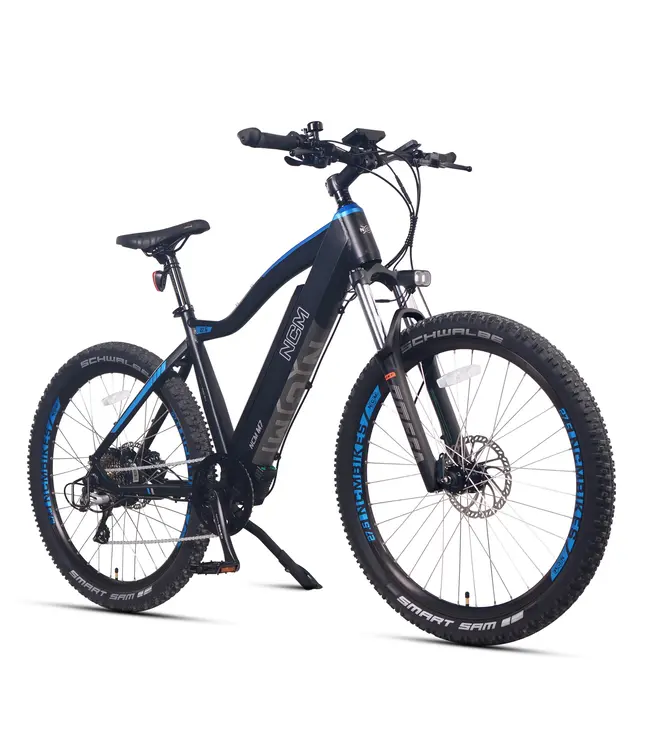

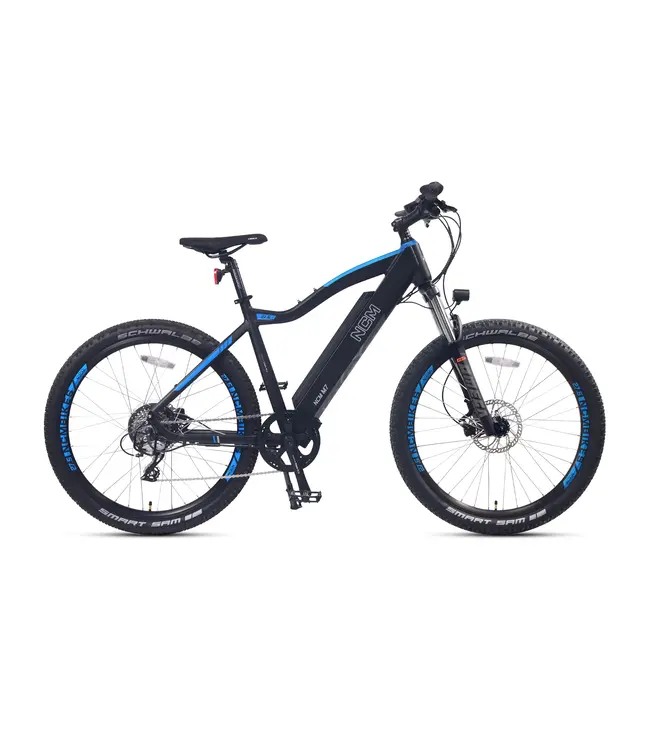

An e-mountain bike equipped with high-end brake and drive systems, the NCM M7 is for adventurous riders who want to hit the trails comfortable in the knowledge that their ebike can handle whatever they throw at it. Read more.
BIKE COMPONENTS
Frame:Â Alu. 6061, 27.5"x480mm

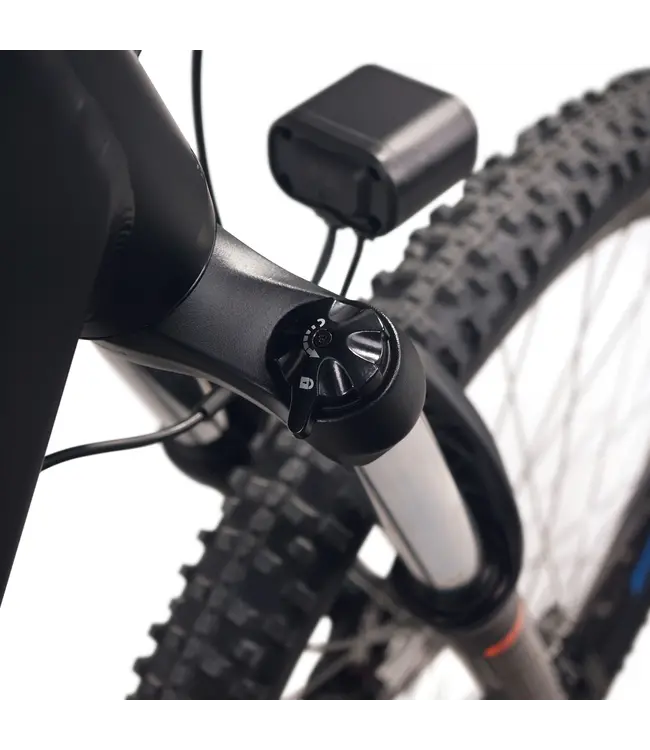

Suspension Fork:Â RST, OMEGA-TNL-27.5, with hydraulic lock system, Magnesium
Brake:Â F: Das-Kit, hydraulic disc brake, DK-100E, 180mm rotor
R: Das-Kit, hydraulic disc brake, DK-100, 180mm rotor
Freewheel:Â 8 Speed, 11-32T
Tire:Â Schwalbe, Smart Sam, 27.5"x2.35, Black

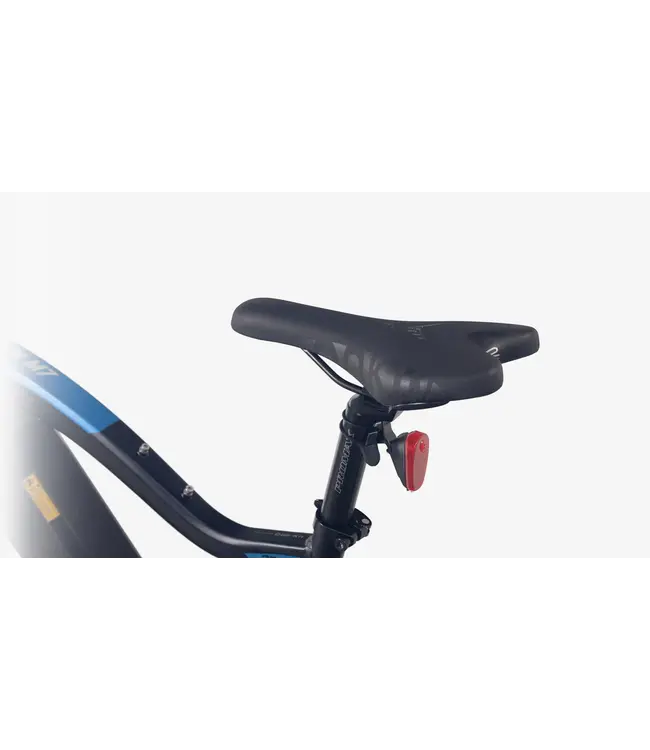

Saddle:Â Selle Royal, Lookin-A200UR, Black
Stem:Â Promax, Alu.MA-471
Crank:Â Das-Kit, 46T
Shifter Right:Â Shimano, Altus, R: SL-M315-8R, 8 Speed
Rear Derailleur:Â Shimano, Acera, RD-M360
Chain:Â KMC, Z8.3RB, Silver
Â
ELECTRIC COMPONENTS
Battery:Â Das-Kit, i7-4819, 48V 19AH, 912Wh, with TAG Technology

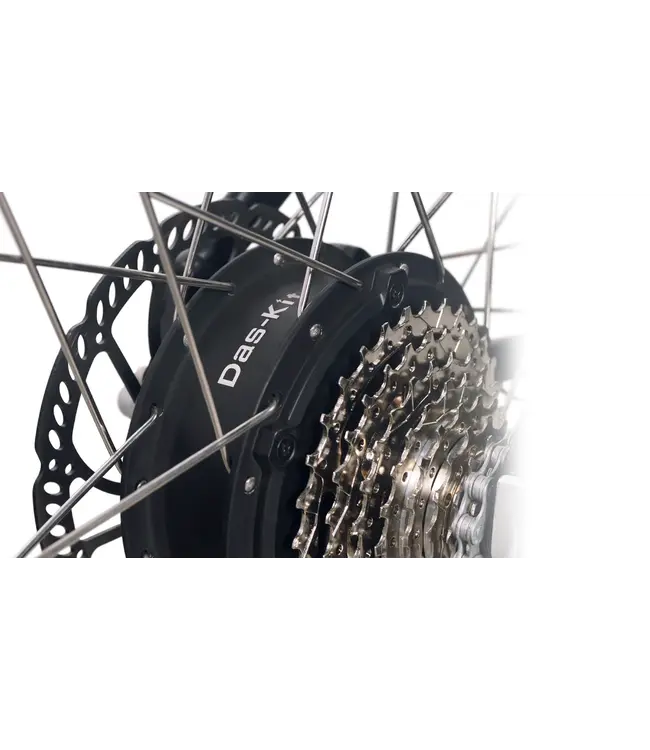

Motor:Â Das-Kit, X15, rear drive motor, 48V 500W, 32KM/H
Controller:Â Das-Kit, T7, 48V 18A
Charger:Â Das Kit, 48V 3A

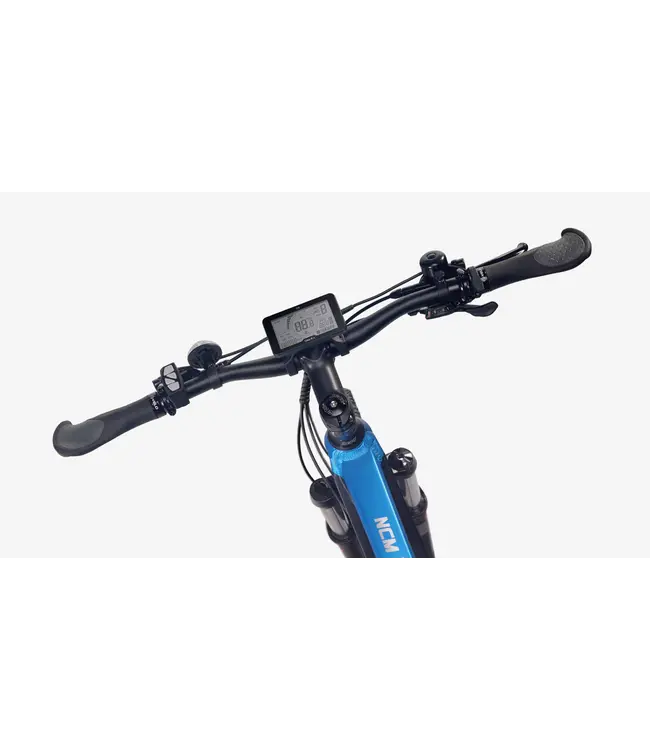

Display:Â Das-Kit, C8, with USB

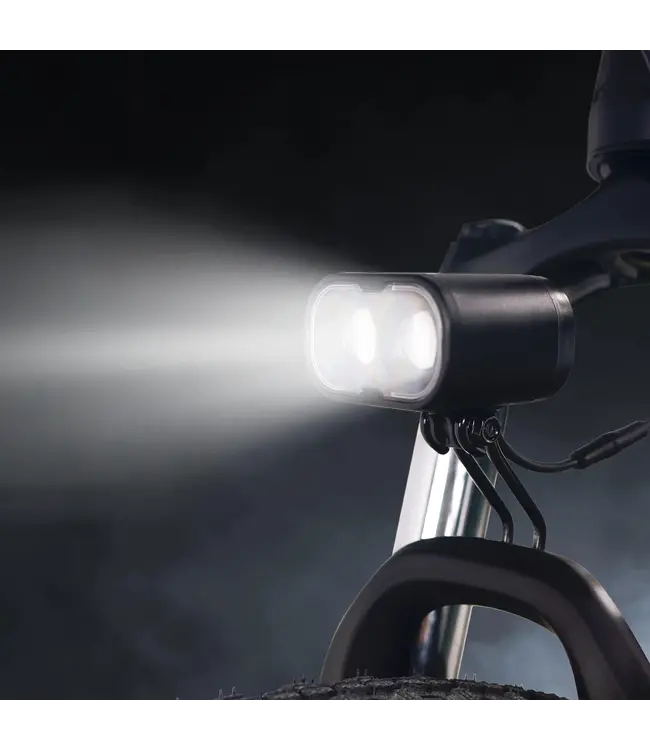

Front Light:Â DH007Plus, 48V, 70Lux
NCM M7 27.5":
Â
WEIGHTÂ
Weight (without battery):Â 23KG (50.7lbs)
Battery Weight:Â 4.8KG (10.6lbs)
Max Load (rider+bike):Â 125KG (275.6 lbs)
