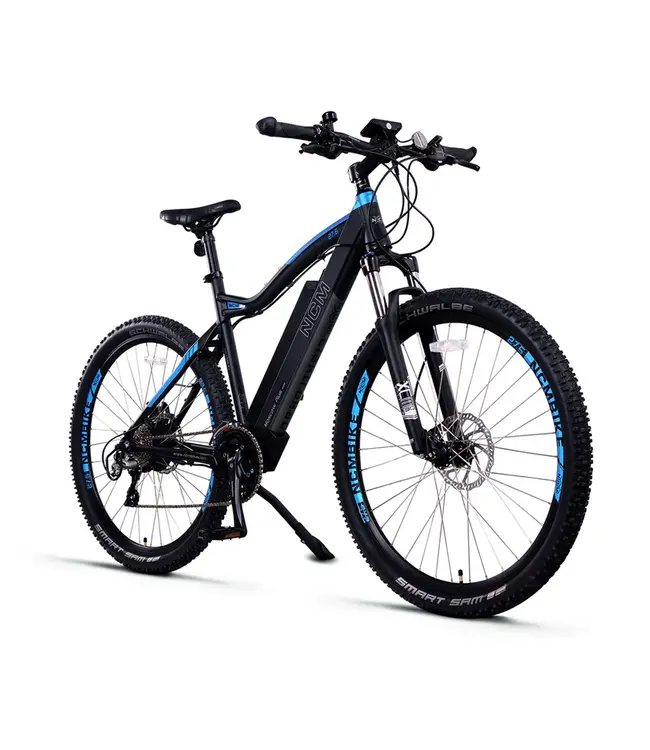

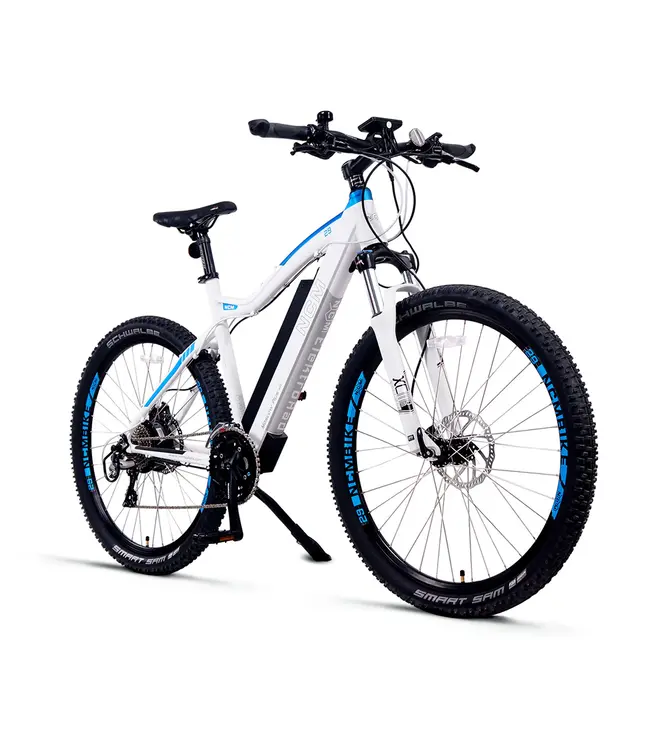

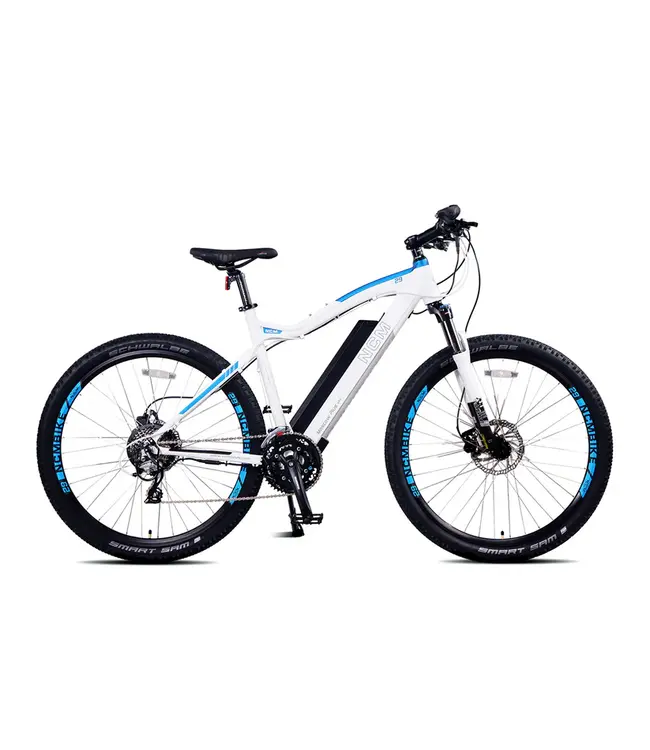

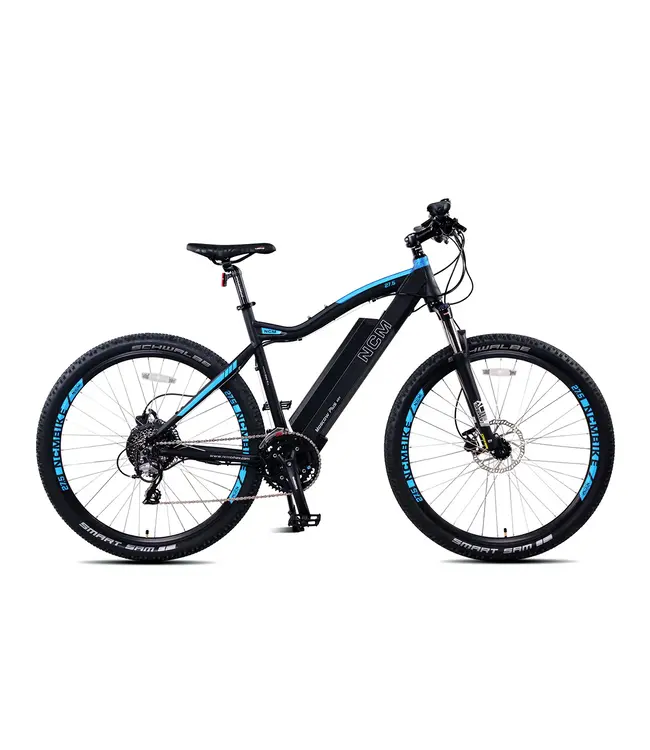

An e-mountain bike equipped with high-end brake and drive systems, the NCM M5 is for adventurous riders who want to hit the trails comfortably knowing that their e-bike can handle whatever they throw at it. Read more.
BIKE COMPONENTS
Frame:Â Alu. 6061, 26"*17.3 inches / Alu. 6061, 27.5"*18.9 inches / Alu. 6061, 29"*20.5 inches
Suspension Fork:Â Suntour, XCM-HLO-26/27.5/29, with hydraulic lock system
Brake:Â F/R: Tektro Hydraulic Disc Brakes,HD-E350
Freewheel:Â LY, 8 Speed, 11-32T, Silver
Tire:Â Schwalbe, Black Jack, 26"*2.1/Smart Sam, 27.5"*2.35/29"*2.35, Black
Saddle:Â Selle Royal, Lookin-A200UR, Black
Crank:Â Das-Kit, CM48,28/38/48T
Derailleur:Â F: Shimano, Altus, FD-M310, R: Shimano, Acera, RD-M360
Â
ELECTRIC COMPONENTS
Battery:Â Das-Kit, i5-4816, 48V 16AH, 768WH

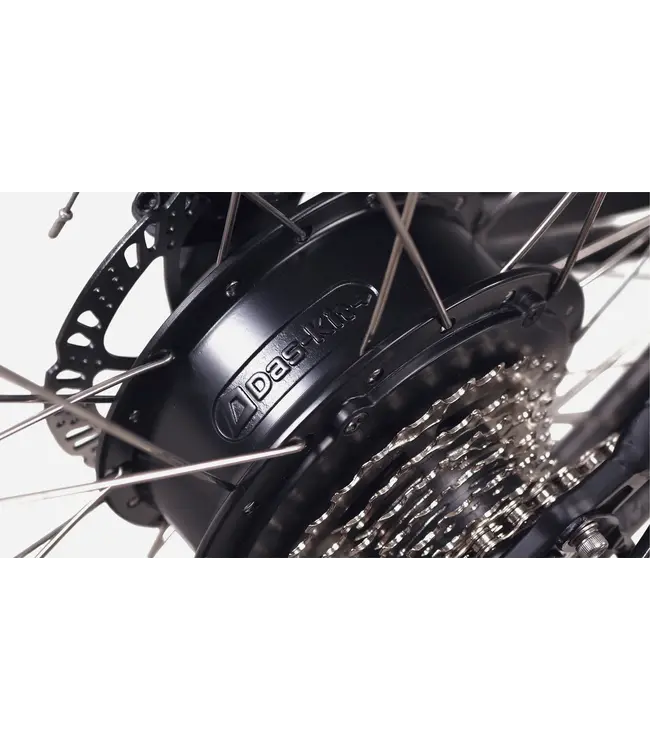

Motor:Â Das-Kit, X15, Rear drive motor, 48V 500W, 32KM/H
Controller:Â Das-Kit, CT-i5, 48V 18A
Charger:Â Das-Kit, 48V3A

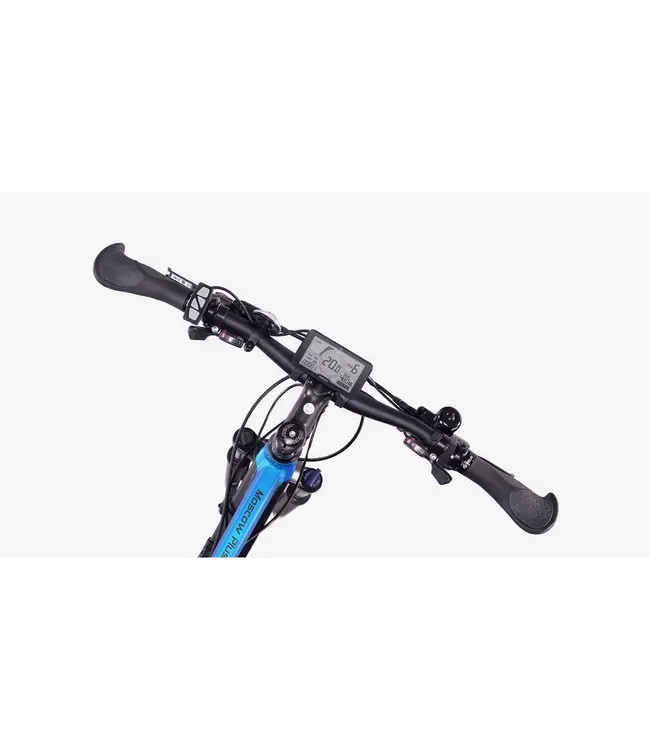

Display:Â Das-Kit, C7
Â
WEIGHT
Net Weight (with battery):Â 26.0kg
Battery Weight:Â 4.0kg
Max Load (driver+bike):Â 125.0kg
