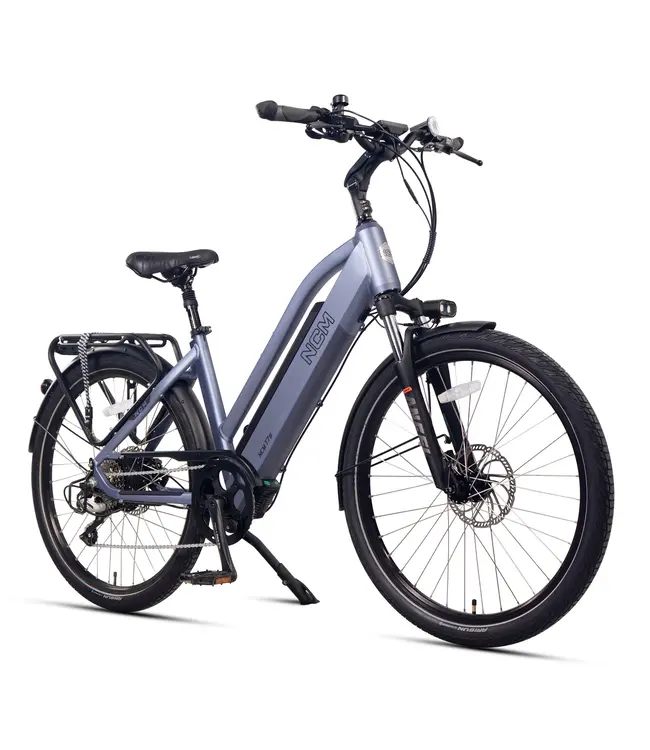

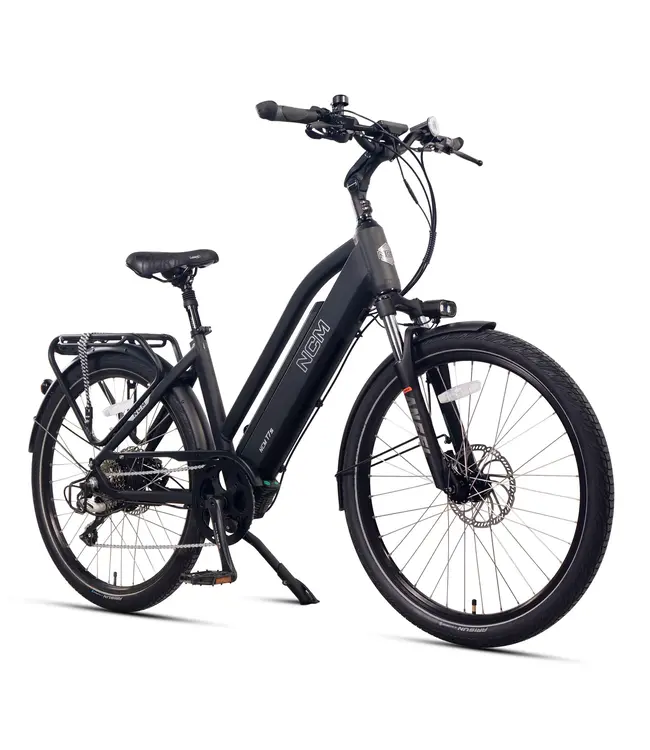

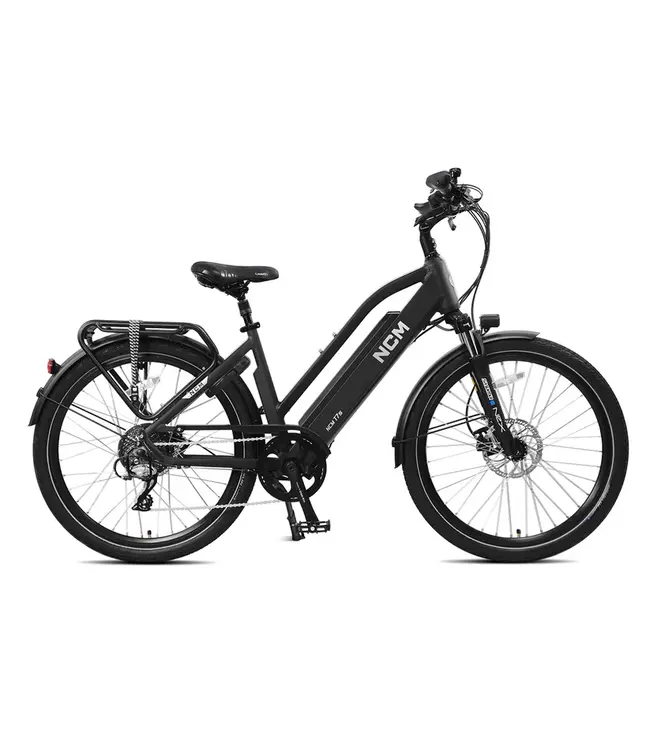

Balancing accessibility with superior specifications, the NCM T7s is a step-through e-trekking bike for riders that are eager to tackle longer routes alongside their daily rides and want an ebike with the range and the integrity to help them do it. Read more.
BIKE COMPONENTS
Frame:Â Alu. 6061, 26"x420mm

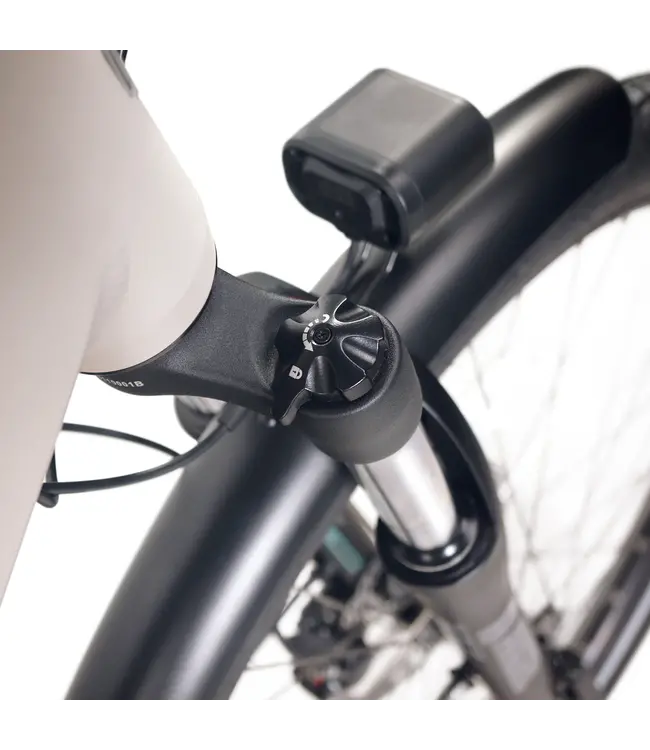

Suspension Fork:Â RST, ANGEL-TNL 26, with hydraulic lock system, Magnesium
Brake:Â F: Das-Kit, hydraulic disc brake,DK-100E,180mm rotor
R: Das-Kit, hydraulic disc brake, DK-100,180mm rotor
Freewheel:Â 8 Speed, 11-32T
Tire:Â Arisun, H-5213E, 26x2.15, black

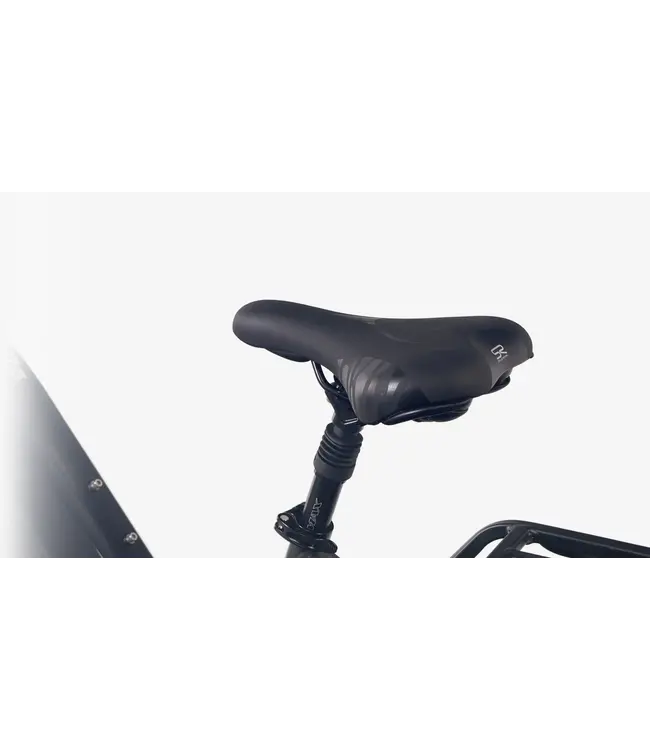

Saddle:Â Selle Royal, Lookin, black
Stem:Â Promax, MA-579
Crank:Â Das-Kit, 46T
Shifter Right:Â Shimano, Altus, R: SL-M315-8R, 8 Speed
Rear Derailleur:Â Shimano, Acera, RD-M360
Chain:Â KMC, Z8.3RB, SilverÂ
Â
ELECTRIC COMPONENTS
Battery:Â Das-Kit, i7-4819, 48V 19AH, 912WH, with TAG Technology

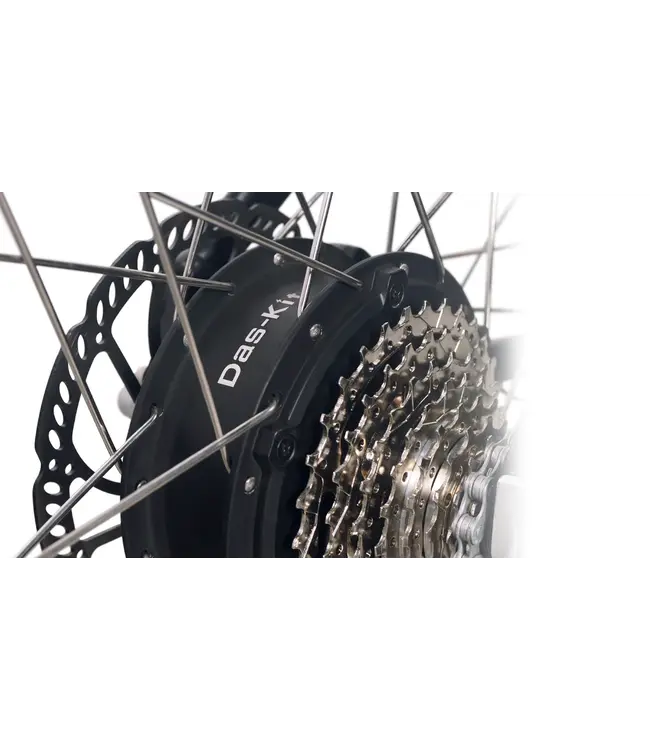

Motor:Â Das-Kit, X15, rear drive motor, 48V 500W, 32KM/H
Controller:Â Das-Kit, T7, 48V 18A
Charger:Â Das Kit, 48V 3A

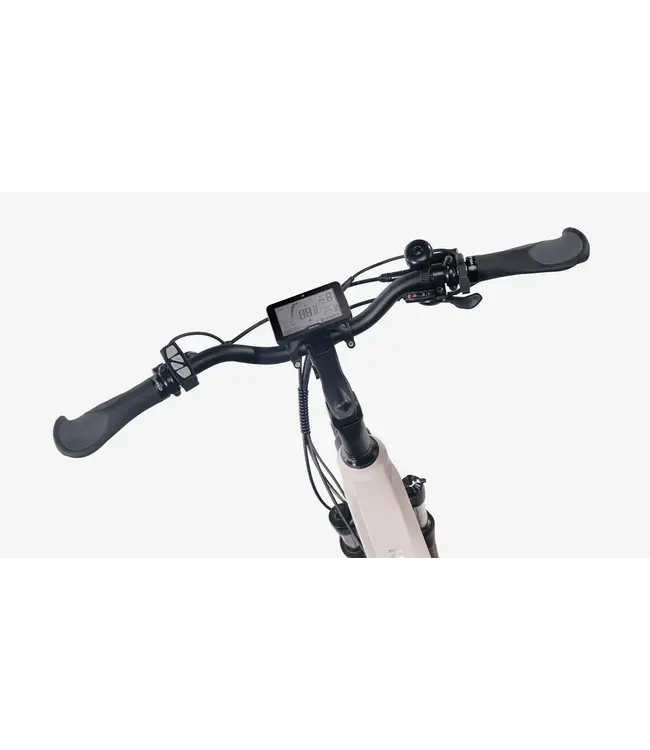

Display:Â Das-Kit, C8, with USB
Â
WEIGHT
NCM T7s 26":
Weight (without battery):Â 24.8KG (54.7lbs)
Battery Weight:Â 4.8KG (10.6lbs)
Max Load (rider+bike):Â 140KG (308.6lbs)

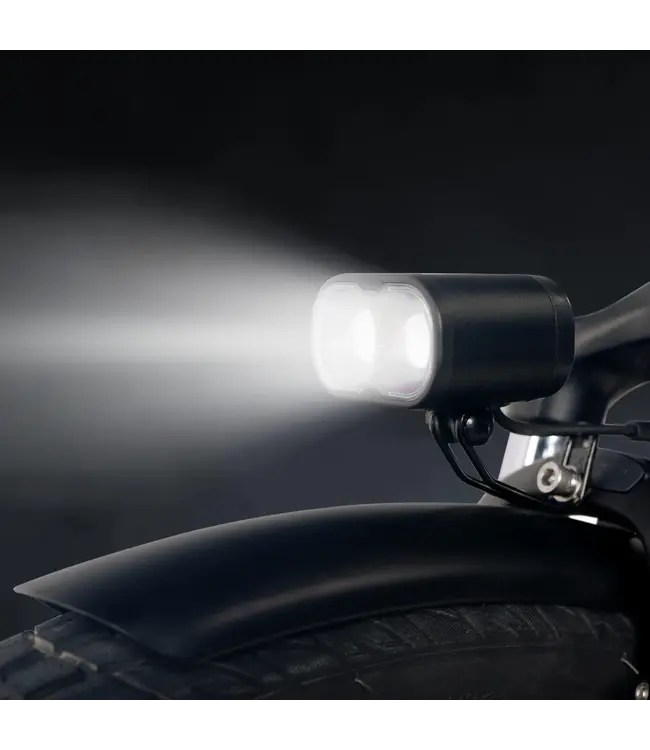

Front Light:Â DH007Plus, 48V, 70Lux
